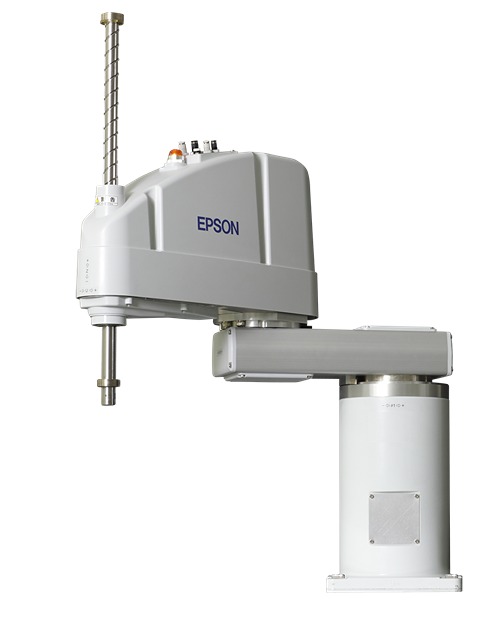

Epson G10


The SCARA robots in the G10 series are among the most powerful robots in their performance class and impress with an outstanding range of movement and maximum space utilisation.

Thanks to their high arm rigidity, they can move heavy loads at high speed.

Comprehensive configuration options. Various arm lengths and different mounting options.

The G robots from Epson are equipped with the proven and powerful RC700A controller.
EpsonG10


Specifications



  • Technical Data
    Number of axles 4
    Load capacity  10 kg
    Weight  51 kg
    Max. Working range 650; 850 mm
    Mounting options Floor
    Repeat accuracy 0.025 mm

  • Options / Interfaces
    I/O expansion, Profibus, Profinet (only with RC700A controller), Ethernet IP, DeviceNet, image processing, conveyor belt synchronisation (only with RC700A controller)

Downloads

EGS catalogu

EGS Catalogue

download-file

Control unit and teach box

Standard
RC700-A

RC700-A

TO THE CONTROLLER

Option

TP3

TO THE CONTROLLER

Standard
TP2 Epson

TP2

TO THE CONTROLLER
