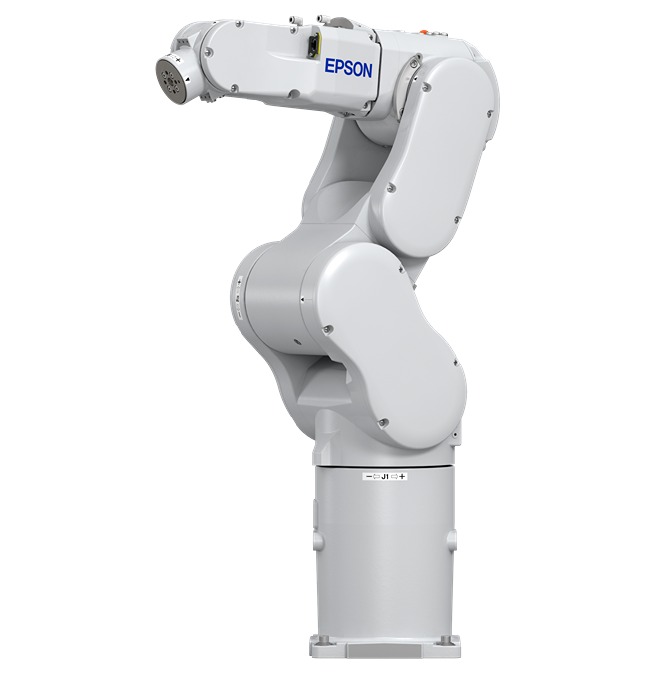

Epson ProSix C8


The Epson ProSix C8 is a lightweight, flexible and compact 6-axis robot with a load capacity of 8 kg and reach of 710 mm. It is suitable for confined working spaces and uses Epson QMEMS sensor technology, which significantly reduces vibrations in the kinematics. Perfectly designed for reaching into tight machine areas. Light enough for mounting on tables. Equipped with the proven, high-performance RC700A control system.


Specifications



  • Technical Data
    Number of axles 6
    Load capacity  8 kg
    Weight  49 kg
    Max. Working range 710 mm
    Mounting options Floor
    Repeat accuracy 0.03 mm

  • Options / Interfaces
    I/O expansion, Profibus, Profinet, Ethernet IP, DeviceNet, image processing, conveyor belt synchronisation

Downloads

EGS catalogu

EGS Catalogue

download-file

Control unit and teach box

Standard
RC700-A

RC700-A

TO THE CONTROLLER

Option

TP3

TO THE CONTROLLER

Standard
TP2 Epson

TP2

TO THE CONTROLLER
