KUKA controllers and teach boxes

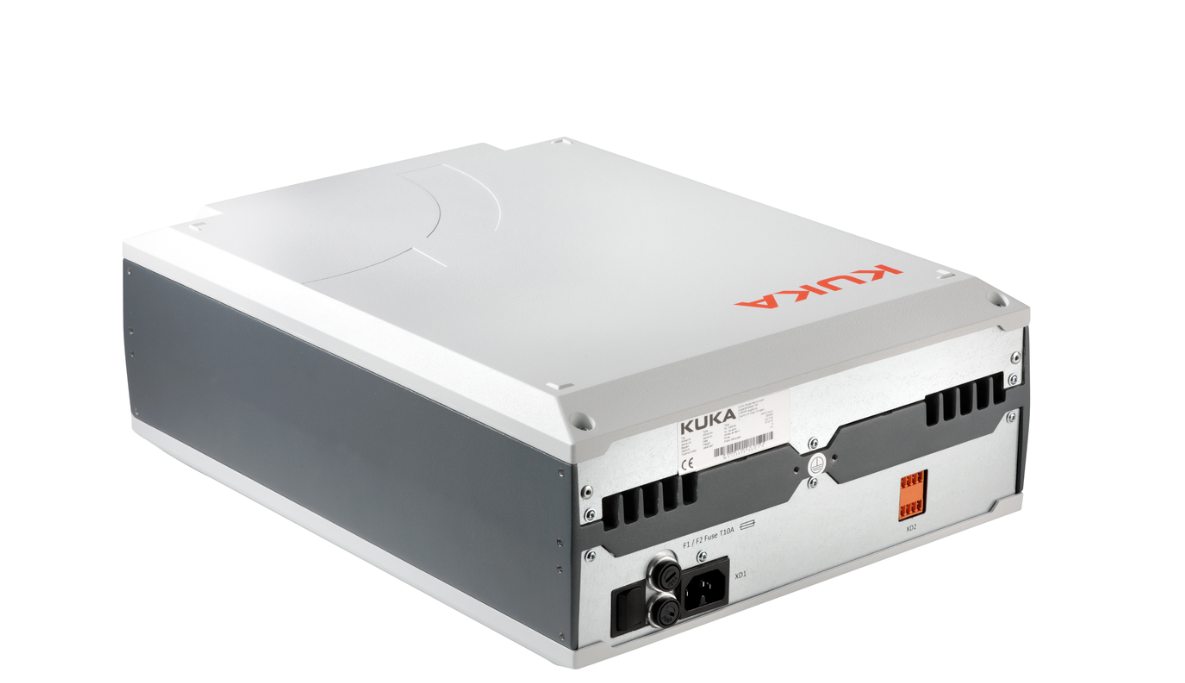

KUKA KR C5 micro

  • Specifications
    Protection class:  IP20
    Installation type:   Built-in, 19" rack
    Electrical connection:  1-phase 200V-240V AC 50Hz/60Hz
    Robot cable:  1-25m
    Number of axes/robots:   1 robot, 2 additional axes

big_KRC5micro

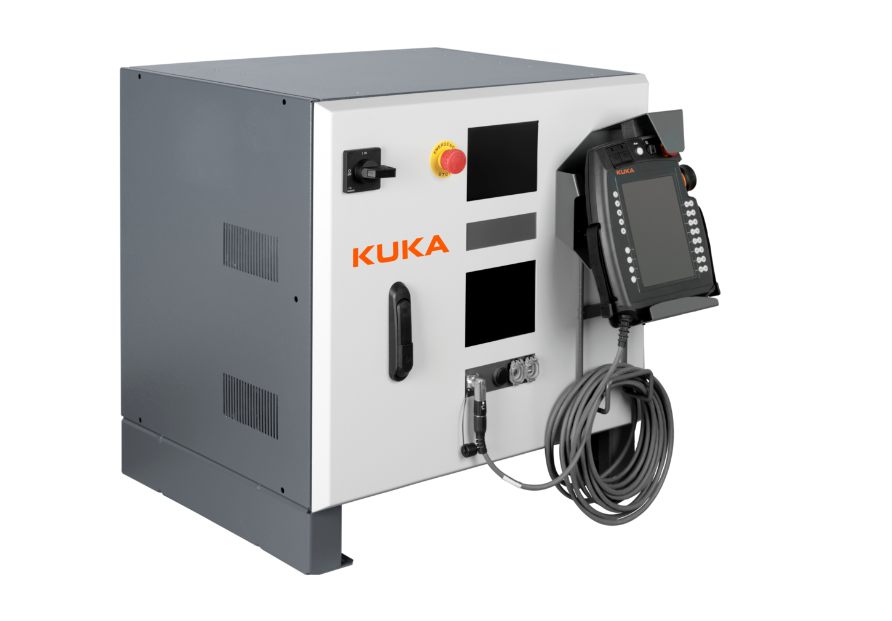

KUKA KR C5

  • Specifications
    Protection class:  IP20
    Installation type:   Built-in, 19" rack
    Electrical connection:  1-phase 200V-240V AC 50Hz/60Hz
    Robot cable:  1-25m
    Number of axes/robots:   1 robot, 2 additional axes

big_C5

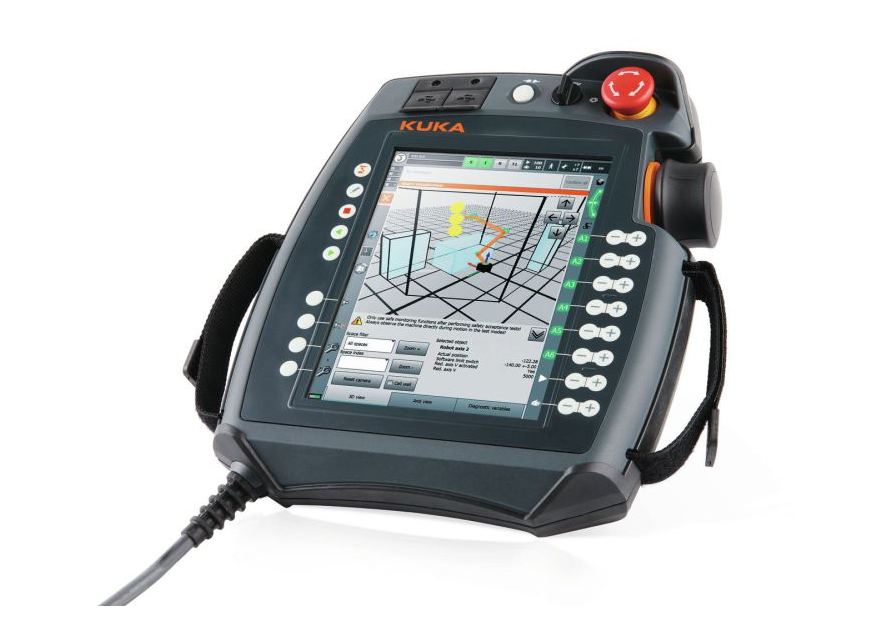

Kuka Smartpad handheld programming unit

  • Specifications
    Weight: 1100g
    Dimensions:  292x247x63 mm
    Data backup interface:  USB
    Size and type of display:  8.4" Touch, 600x800 Pixel
    Movement of the robot via: Buttons, 6D mouse
    Cable:  Plugged in on the robot side

big_Smartpad
