Contact UsSUMO DUPLEX
COMPACT | USER-FRIENDLY | PROFITABLE
The space-saving entry into automation
The SUMO Duplex is an economical and space-saving entry-level solution for automating your handling and production processes.

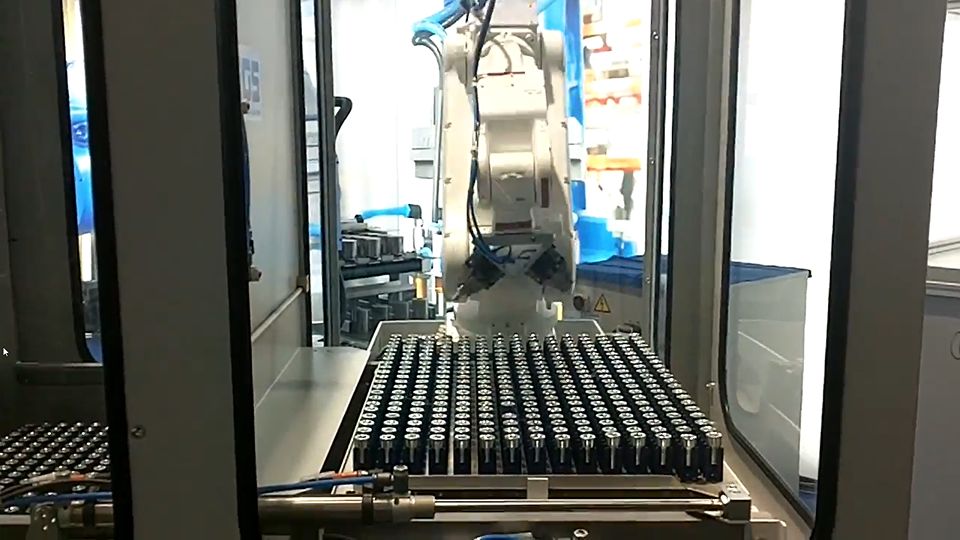

Workpiece handling is done with precision and reliability by an industrial robot that offers the necessary flexibility for workpieces of different sizes and geometries. Workpiece-specific gripper tools ensure precision pick-up, transfer and placement of parts. Workpieces are stored on standardised pallets. These can be prepared in pairs independently of the production process and exchanged at any time during automatic operation. SUMO Duplex really comes into its own in applications where space is at a premium and process times range from 30 seconds to several minutes.
Economical & efficient
High energy saving potential compared to pneumatics
Lower operating costs due to lower energy consumption
Lower operating costs due to lower energy consumption
Fast
Pallet change in under 10 sec.
Modular
Customised adaptation of pallets to workpieces, product-specific inlays or modular plastic clips
Flexible
Minimal space requirement –
1.5 m² footprint
1.5 m² footprint
Specifications
-
Technical Data
Robot load capacity upto 10 kg Robot reach upto 1.101 mm Number of pallets 2pcs Possible pallet/workpiece carrier 600 mm x 400 mm (1/4-(quarter Euro pallet) Max. part weight 7.5 kg Max. pallet load 20 kg Pallet change time <10 s Space requirement Area approx.1.40 m x 1.18 m, height, 2.00 m Weight approx. 550 kg
Any questions on this product? Please feel free to contact us!
