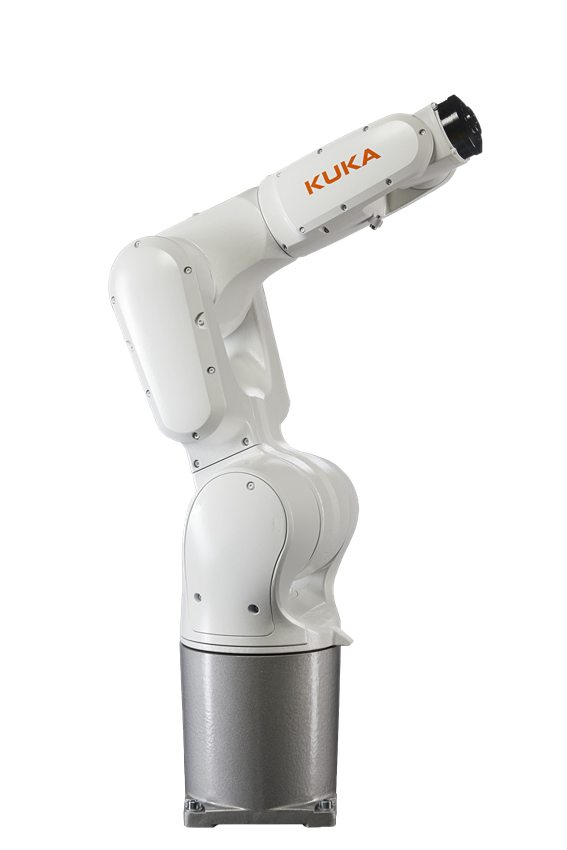

KR 10 R1100-2


The Kuka KR10 R1100-2 from the Agilus series is a compact 6-axis robot that is available in different versions in addition to the standard version. It is available in the EX, cleanroom, waterproof and hygienic variants. With a load capacity of 11 kg with a reach of 1101 mm, it is also equipped with the KR C5 micro control unit.
KR 10 R1100-2


Specifications



  • Technical Data
    Number of axles 6
    Load capacity 11 kg
    Weight 55 kg
    Max. Working range 1101 mm
    Mounting options Floor, ceiling, wall
    Repeat accuracy 0.02 mm

  • Options / Interfaces
    I/O expansion, PROFIBUS, PROFINET, Ethernet/IP, DeviceNet, image processing, conveyor belt synchronisation, safety control

Downloads

EGS catalogu

EGS Catalogue

download-file

Control unit and teach box

Standard
Steuerung von KUKA

KR C5 micro

TO THE CONTROLLER

Standard
SmartPad von KUKA

SmartPad

TO THE CONTROLLER
