KR 10 R1440-2

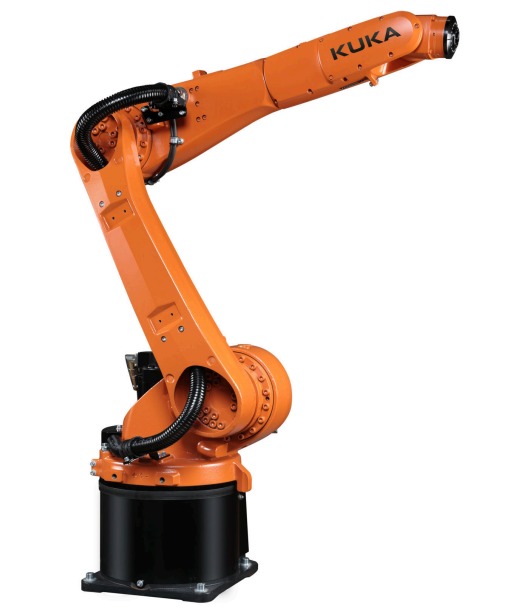

The Kuka KR10 R1440-2 from the Cybertech nano series is a 6-axis robot with a load capacity of 10 kg and a reach of 1440 mm. It is a robot that can be used in a wide variety of applications, e.g. handling, palletising, machine loading and assembly tasks. It can be supplied with the KR C5 or KR C5 micro controller.
KR 10 R1440-2


Specifications



  • Technical Data
    Number of axles 6
    Load capacity 10 kg
    Weight 153 kg
    Max. Working range 1440 mm
    Mounting options Floor, ceiling, wall
    Repeat accuracy 0.04 mm

  • Options / Interfaces
    I/O expansion, PROFIBUS, PROFINET, Ethernet/IP, DeviceNet, image processing, conveyor belt synchronisation, safety control

Downloads

EGS catalogu

EGS Catalogue

download-file

Control unit and teach box

Standard
KUKA KR C5

KR C5

TO THE CONTROLLER

Option
Steuerung von KUKA

KR C5 micro option

TO THE CONTROLLER

Standard
SmartPad von KUKA

SmartPad

TO THE CONTROLLER
