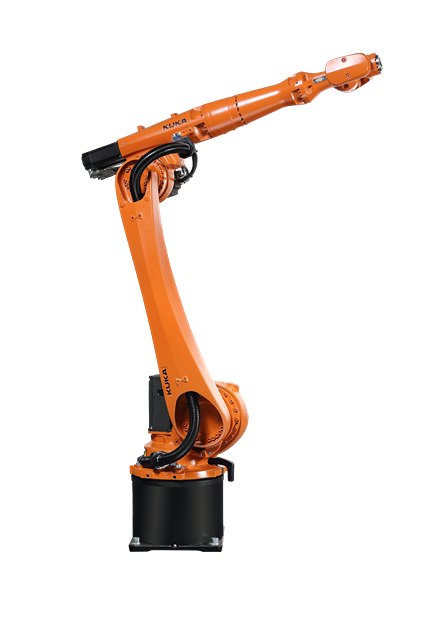

KR 12 R1810-2


The Kuka KR12 R1810-2 from the Cybertech series is a 6-axis robot with a load capacity of 12 kg and a reach of 1810 mm. With its long reach, this robot is used for bridging longer distances and processing larger areas. It has the standard protection class of IP65 and is equipped with the KR C5 controller.
KR12 R1810-2


Specifications



  • Technical Data
    Number of axles 6
    Load capacity 12 kg
    Weight 225 kg
    Max. Working range 1813 mm
    Mounting options Floor, ceiling, wall
    Repeat accuracy 0.04 mm

  • Options / Interfaces
    I/O expansion, PROFIBUS, PROFINET, Ethernet/IP, DeviceNet, image processing, conveyor belt synchronisation, safety control

Downloads

EGS catalogu

EGS Catalogue

download-file

Control unit and teach box

Standard
KUKA KR C5

KR C5

TO THE CONTROLLER

Option
Steuerung von KUKA

KR C5 micro option

TO THE CONTROLLER

Standard
SmartPad von KUKA

SmartPad

TO THE CONTROLLER
