Motoman HC10DTP


The MOTOMAN HC10DTP is ideally suited for easy use of a cobot in industrial applications. Its robust, lightweight housing has an IP67 protection class, which protects it from dust, coolants and welding spatter. This makes it ideal for use in harsh environmental conditions, such as welding applications or machine tool loading. Thanks to its food-grade lubricating grease, the MOTOMAN HC10DTP is also the perfect solution in sensitive environments such as the food and pharmaceutical industries. A load capacity of 10 kg and a maximum reach of 1,379 mm makes it suitable for a wide range of applications.
Motoman_HC10DTP


Specifications



  • Technical Data
    Number of axles  6
    Load capacity  10 kg
    Weight  58 kg
    Power supply  1 kVA
    Max. working range 1.379 mm
    Mounting options Floor, ceiling, wall
    Repeat accuracy 0.05 mm

  • Options / Interfaces
    I/O expansion, analogue interface, Profibus, Profinet, Ethernet IP, DeviceNet, image processing

Downloads

EGS catalogu

EGS Catalogue

download-file

Control unit and teach box

Standard
Steuerung

YRC 1000

To Controller

Option

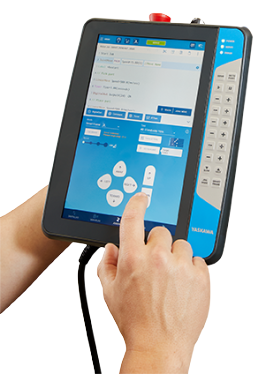

Smart Pendant

Smart Pendant

To Teachbox

Standard
Teachbox

PHG YRC 1000

To Teachbox
