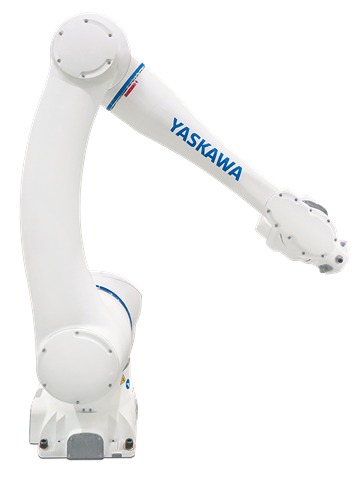

Motoman HC20DTP


The MOTOMAN HC20DTP is the largest robot in the HC product family, with a remarkable load capacity of 20 kg, an enormous maximum reach of 1,900 mm and outstanding repeat accuracy. This makes the robot ideal for palletising tasks without protective fences, e.g. in end-of-line packaging technology. However, thanks to its resistant surface coating and IP67 protection class against coolant and dust, it is also possible to use it for applications in harsh environments, e.g. machine tool loading.
HC20DTP


Specifications



  • Technical Data
    Number of axles  6
    Load capacity  20 kg
    Weight  120 kg
    Power supply  1.5 kVA
    Max. working range 1.900 mm
    Mounting options Floor, ceiling, wall
    Repeat accuracy 0.05 mm

  • Options / Interfaces
    I/O expansion, analogue interface, Profibus, Profinet, Ethernet IP, DeviceNet, image processing

Downloads


Control unit and teach box

Standard
Steuerung

YRC 1000

To Controller

Option
Smart Pendant

Smart Pendant

To Teachbox

Standard
Teachbox

PHG YRC 1000

To Teachbox
