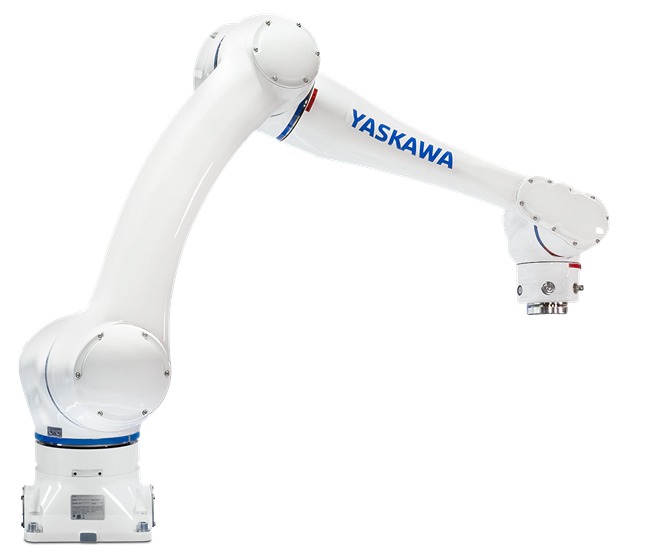

Motoman HC30PL


The MOTOMAN HC30PL is the largest cobot in the HC product family with an impressive load capacity of 30 kg, a maximum reach of 1,700 mm and outstanding repeat accuracy. This makes the cobot ideal for palletising tasks without protective fences, e.g. in end-of-line packaging technology. The food-safe lubricating grease also makes it eligible for further applications in the food and pharmaceutical industries. Despite its size, this cobot is perfectly suited for use without a safety fence and for human-robot collaboration. The plug & play connection of grippers is facilitated by the ISO flange and configuration wizards on the Smart Pendant. Thanks to the integrated torque sensors in each joint, the cobot can be used in human-robot collaboration without a safety fence.
HC30PL


Specifications



  • Technical Data
    Number of axles  6
    Load capacity  30 kg
    Weight  140 kg
    Power supply  1.5 kVA
    Max. working range 1.700 mm
    Mounting options Floor
    Repeat accuracy 0.05 mm

  • Options / Interfaces
    I/O expansion, analogue interface, Profibus, Profinet, Ethernet IP, DeviceNet, image processing

Downloads

EGS catalogu

EGS Catalogue

download-file

Control unit and teach box

Standard
Steuerung

YRC 1000

To Controller

Option
Smart Pendant

Smart Pendant

To Teachbox

Standard
Teachbox

PHG YRC 1000

To Teachbox
