Epson G20



The SCARA robots in the G20 series are specially designed for high load-bearing capacities of up to 20 kg, such as heavy components or packaging units. With an arm length of up to 1 metre, they cover a large working area.

Load capacity of up to 20 kg without compromising on speed.

Comprehensive configuration options. Various arm lengths and different mounting options.

The G robots from Epson are equipped with the proven, high-performance RC700A controller.

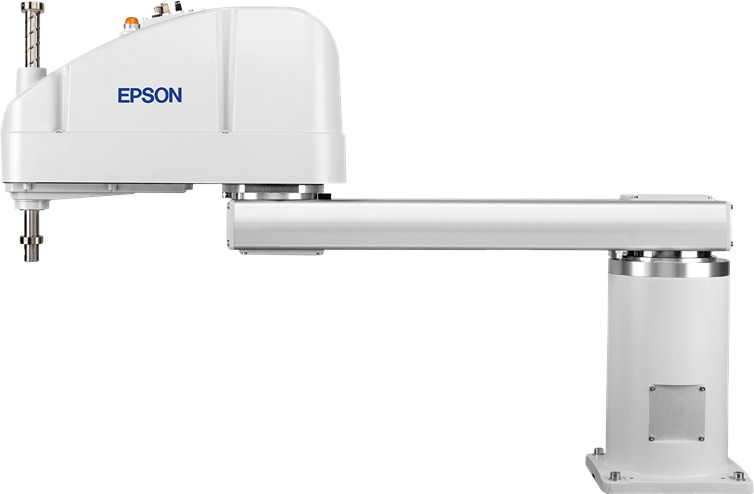

EpsonG20


Specifications



  • Technical Data
    Number of axles 4
    Load capacity  20 kg
    Weight  53 kg
    Max. Working range 850; 1000 mm
    Mounting Options Floor
    Repeat accuracy 0.025 mm

  • Options / Interfaces
    I/O expansion, Profibus, Profinet (only with RC700A controller), Ethernet IP, DeviceNet, image processing, conveyor belt synchronisation (only with RC700A controller)

Downloads

EGS catalogu

EGS Catalogue

download-file

Control unit and teach box

Standard
RC700-A

RC700-A

TO THE CONTROLLER

Option

TP3

TO THE CONTROLLER

Standard
TP2 Epson

TP2

TO THE CONTROLLER
