SUMO Easyplex


UNIVERSAL, SMART, AFFORDABLE



The affordable, simple and universal entry-level solution for automation

The SUMO Easyplex is a very affordable and universal entry-level solution for the automatic loading and unloading of your production process.

Workpieces are handled precisely and reliably by an industrial robot. It offers the necessary flexibility for different workpiece sizes and geometries. Workpiece-specific gripper tools ensure precise part pick-up, transfer and placement. Workpieces are stored in standardized containers that can be individually adapted to a wide variety of workpieces. These can be prepared independently of the production process and exchanged at any time during automatic operation. The device is optionally available with a safety fence or without a safety fence with a safety floor scanner. The SUMO Easyplex is easy to transport and install and can therefore be used on different machines and processes. Thanks to its simple design and easy handling, it is also suitable for do-it-yourself integration on existing machines. The EGS Smart Pad makes it easy to operate, parameterize and set up the robot cell without any programming knowledge. Production data is displayed clearly and attractively.
Downloads
GO TO DOWNLOADS
Specifications
GO TO SPECIFICATIONS

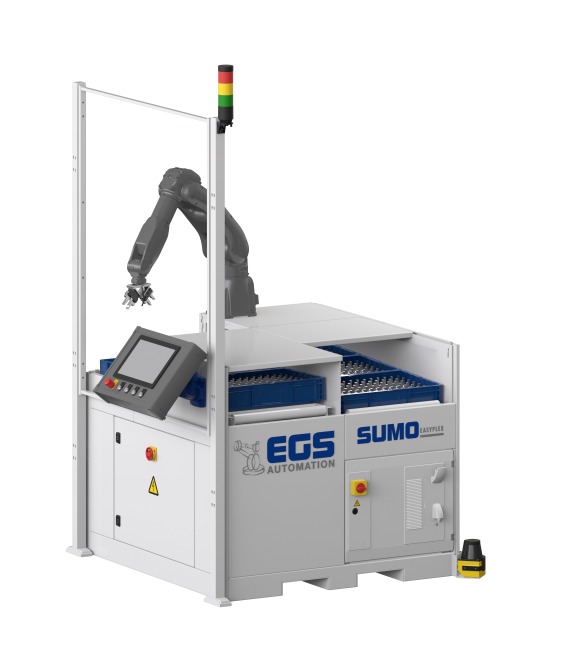

Automation System with robot
feature card bg
Flexible

Flexible

Minimum space requirement -
1.9 m² footprint
feature card bg
Puzzle Piece

Modular

Workpiece containers can be individually adapted to a wide variety of workpieces. Two robot sizes available. Robot reach of up to 1.5 meters
feature card bg
Dynamic

Fast

Easy to set up and operate with EGS Smart Pad, no robot programming knowledge required
feature card bg
Karten_Icon_Zugnglich

Accessible and Fast

Full accessibility to the machine possible, even during operation. Easy to install and transport

Specifications

  • Technical Data
      Robot load capacity upto 12 kg
      Robot reach upto 1.440 mm
      Number of pallets 3 pcs
      Possible pallet/workpiece carrier Small load carrier 600 mm x 400 mm x 150 mm
      Max. pallet load max 14 kg to 20 kg depending on robot
      Pallet change time <8 s
      Space requirement Area approx. 1,35 m x 1,40 m, height 2,30 m
      Weight approx. Approx. 500 kg

head set blue headphone
Any questions on this product? Please feel free to contact us!
CONTACT US

Downloads

EGS catalogu

EGS Catalogue

download-file

Images SUMO Easyplex

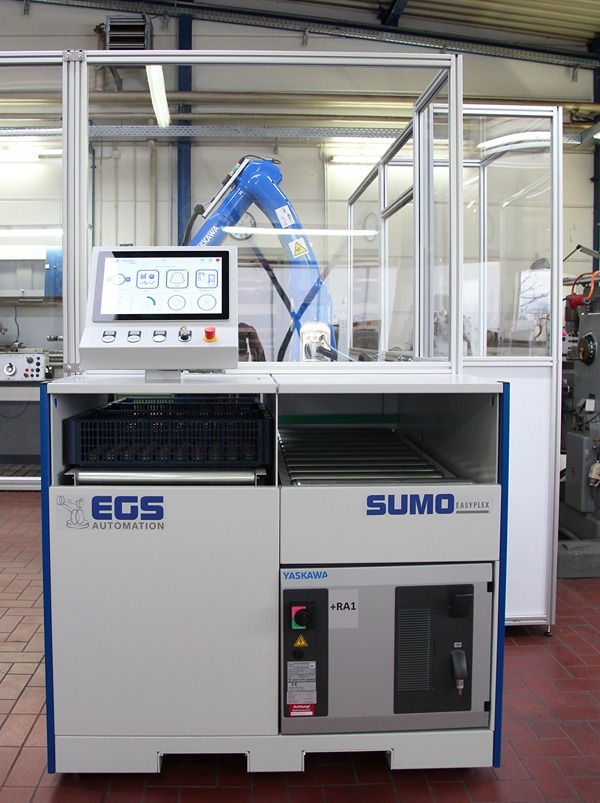

Automation Cell with robot Easyplex

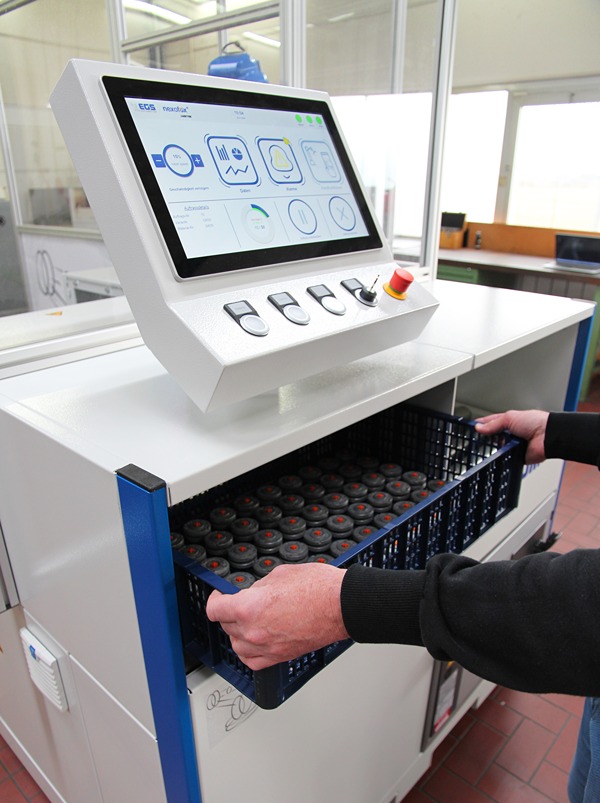

Smartpad for Automation cell
