SUMO ECOPLEX2


FLEXIBLE, ERGONOMIC, EFFICIENT

A highly flexible, space-saving universal system with clever workpiece feed

The SUMO Ecoplex2 is a clever, compact solution with a large, expandable workpiece storage system for automating your handling and production process.

Workpiece handling is done with precision and reliability by an industrial robot that offers the necessary flexibility for workpieces of different sizes and geometries. Workpiece-specific gripper tools ensure precision pick-up, transfer and placement of parts. Workpieces are stored in insertion trolleys, on floor rollers or via accumulating conveyors in stackable workpiece carriers of various dimensions. The customer’s own existing floor rollers and baskets can be used with the SUMP Ecoplex2. If the version with insertion trolleys is preferred, these can be incorporated into a production-wide logistics concept or integrated into existing workpiece logistics solutions.
Downloads
GO TO DOWNLOADS
Specifications
GO TO SPECIFICATIONS
Videos
GO TO VIDEOS

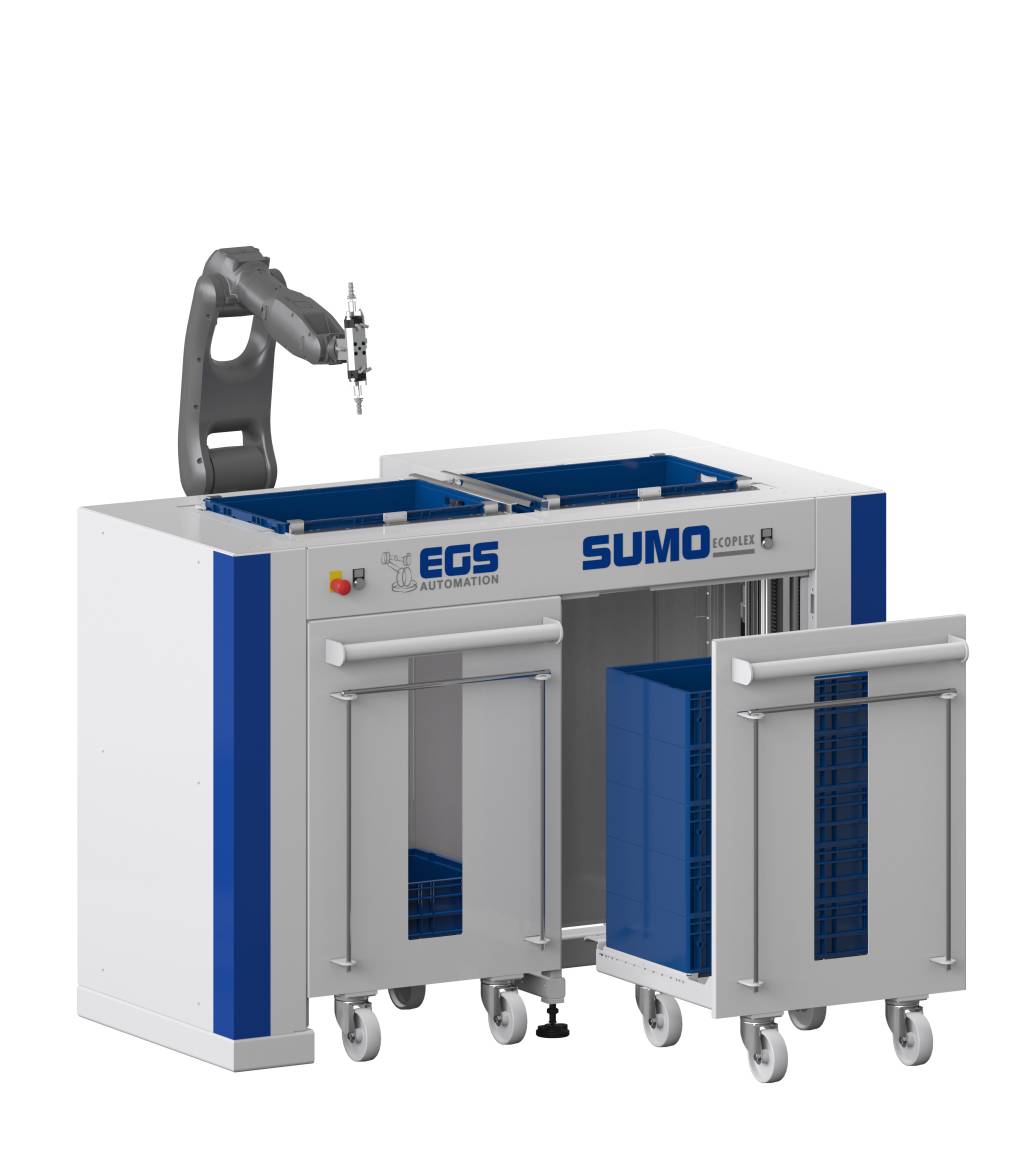

SUMO-ECPLEX2
feature card bg
Flexible

Flexible

Variable workpiece feed via insertion trolleys or belts
feature card bg
compact

Compact & Autonomous

Low space requirement with maximum autonomy, variant with accumulating conveyors allows almost infinitely expandable autonomy
feature card bg

Modular

Stackable workpiece carriers in various formats up to 600x400mm (quarter Euro pallet)
feature card bg
Dynamic

Fast and convenient

Variant with insertion trolleys or floor rollers offers time-saving, ergonomic and convenient loading


Specifications



  • Technical Data
    Robot load capacity upto 25 kg
    Robot reach upto 1.730 mm
    Autonomy / capacity 1 stack with 800mm net stack height
    Possible pallet/workpiece carrier Stackable workpiece carriers in a wide range of formats up to max. 600 mm x 400 mm
    Max. part weight 7.5 kg (optionally more)
    Max. pallet load 20 kg (optionally more)
    Pallet change time <10 s
    Space requirement Area approx 1.35 m x 2.14 m, height 2.00 m
    Weight approx. 900 kg

head set blue headphone
Any questions on this product? Please feel free to contact us!
CONTACT US

Downloads

SUMO-ecoplex2

SUMO Ecoplex2

download-file
EGS catalogu

EGS Catalogue

download-file

The SUMO Ecoplex2 in use

SUMO_Ecoplex2
video-player

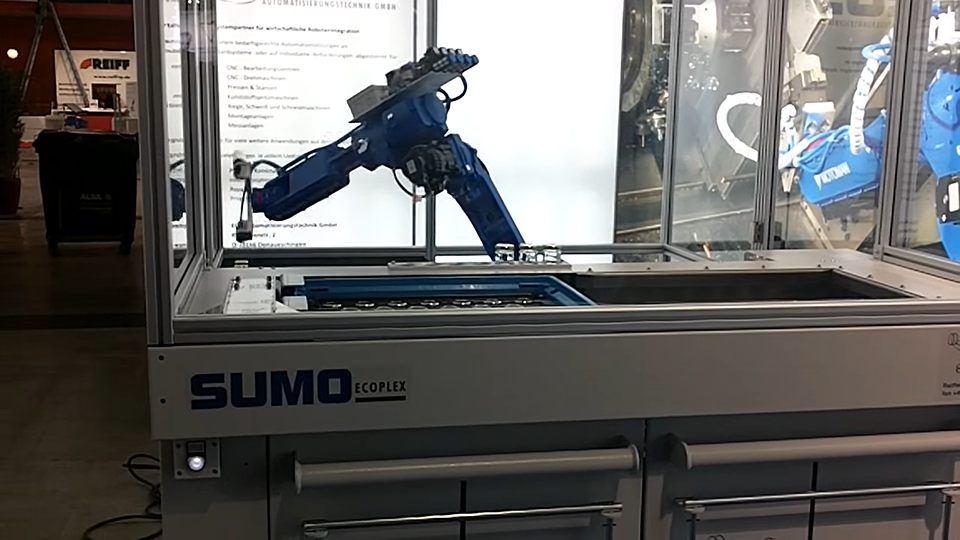

Palettier und Beladesystem mit MOTOMAN-Roboter SUMO Ecoplex von EGS Automation technology

Flexible automation system with 12-fold palletising unit. Very high autonomy of the system thanks to a storage capacity of 12 raw part or 12 finished part pallet spaces. While the current pallet is being processed by the 6-axis robot, new raw part pallets can be inserted or finished part pallets removed at any time in automatic mode. Pallets in standard format 600x400mm (1/4 Euro pallet). The pallets can be adapted to the workpieces using plug-in pallet systems or customised, product-specific inlays. Very compact design, outstanding autonomy in relation to space requirements. The optional side shifting system allows the loading system to be easily shifted to the side, providing full accessibility for manual loading of small batches or for set-up.
02:21
SUMO_Ecoplex
video-player

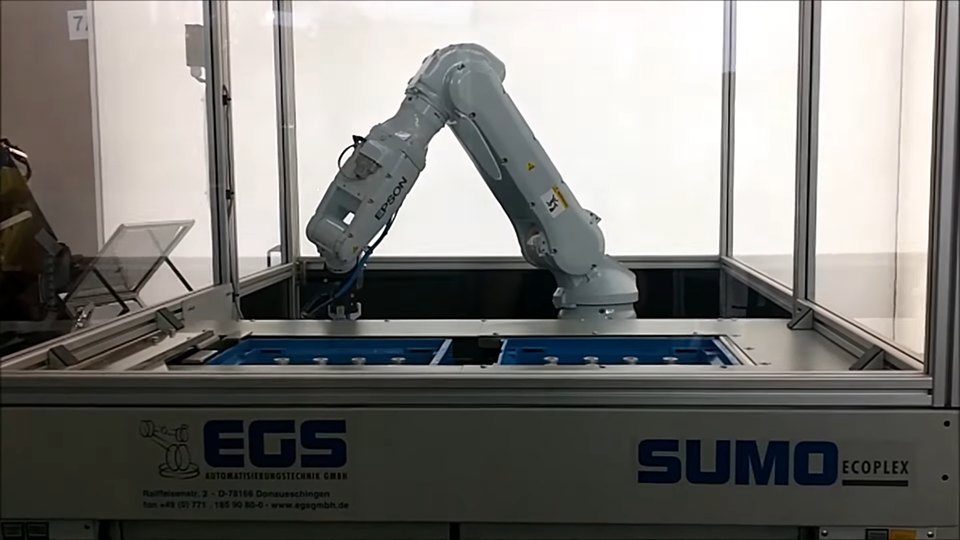

SUMO Ecoplex 2 from EGS Automation Technology with Epson ProSix robot

The SUMO Ecoplex2 is the smart and compact solution with a large, expandable workpiece storage system for automating your handling and production process. An industrial robot ensures reliable and precise workpiece handling and offers the necessary flexibility for different workpiece sizes and geometries. Workpieces are stored in push-in trolleys or via accumulation conveyors in stackable workpiece carriers or customised containers of different dimensions.
SUMO_Ecoplex2
video-player

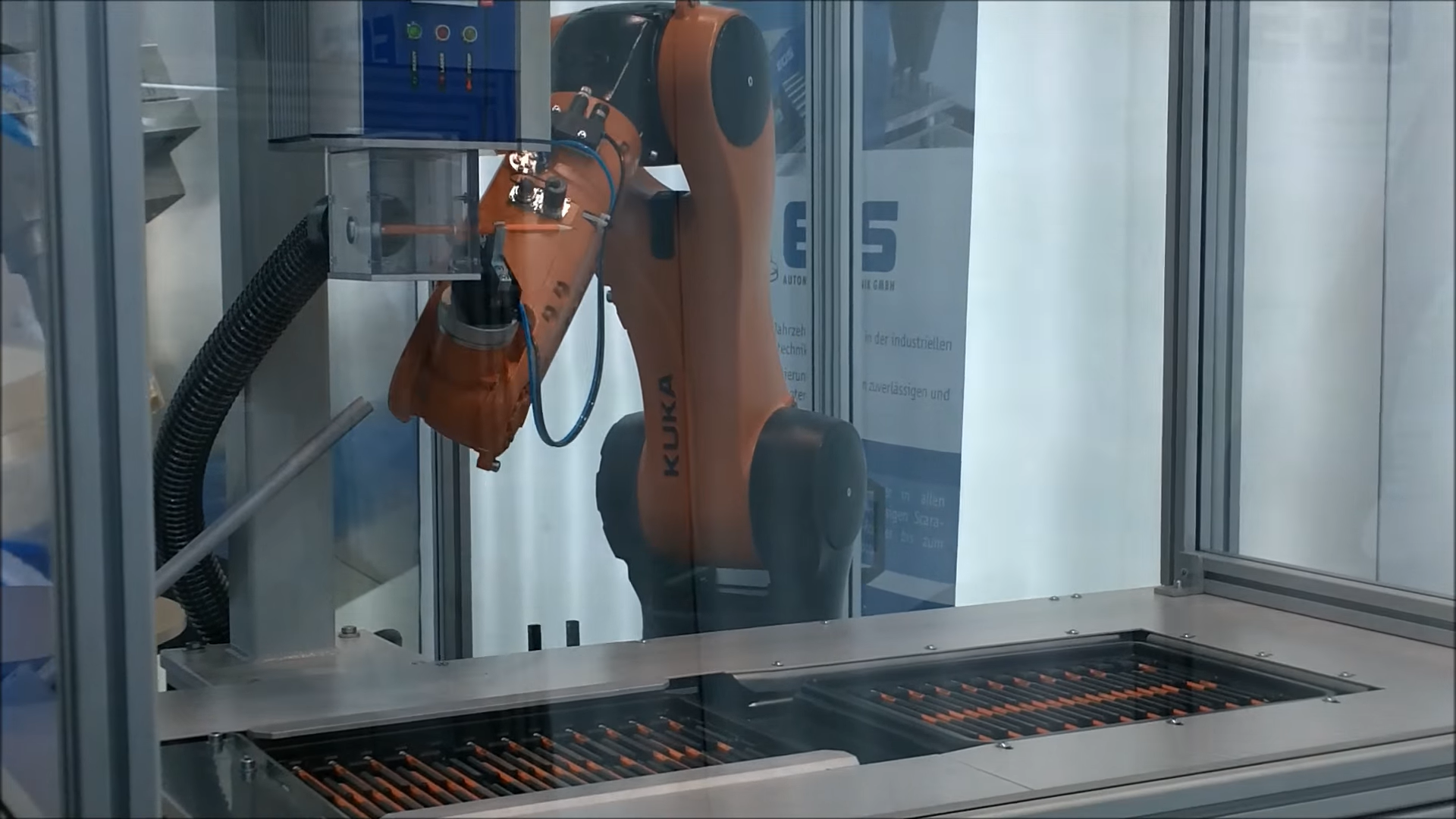

SUMO Ecoplex 2 from EGS Automation Technology with Kuka KR Agilus robot labels pencils

00:43
