SUMO FLEXIPLEX


ADJUSTABLE, USER-FRIENDLY, PROFITABLE
Clever, adaptable automation for great part variance

The SUMO Flexiplex is a compact and extremely flexible solution for automating your handling and production process.

Workpiece handling is done with precision and reliability by an industrial robot that offers the necessary flexibility for workpieces of different sizes and geometries. Workpiece-specific gripper tools ensure precision pick-up, transfer and placement of parts. The workpieces are fed in and removed using multi-lane conveyor belts that can be adjusted for the component that it is handling at the time in just a few quick steps. The SUMO Flexiplex is the ideal solution for dealing with great part variation and frequent retooling processes.
Downloads
GO TO DOWNLOADS
Specifications
GO TO SPECIFICATIONS
Videos
GO TO VIDEOS
sumo-flexiplex
feature card bg
Karten_Icon_variable

Variable

Workpiece weights of up to 25 kg and a reach of up to 1,730 mm.
feature card bg
Dynamic

Fast and convenient

Changeover in seconds with just a few simple steps and without changing parts or tools, intelligent gripper concepts
feature card bg
Flexible

Flexible

Small batches, various part geometries
feature card bg
Karten_Icon_Autonom

Autonomous

Workpieces are fed in and out via multi-track belts. The entire belt length is used for workpiece storage


Specifications



  • Technical Data
    Robot load capacity 25 kg
    Robot reach upto 1.730 mm
    Number of tracks supply and discharge belt 4-5, depending on adjustment range
    Possible pallet/workpiece carrier up to 1200 mm x 1000 mm possible
    Max. part weight 15 kg
    Total active bandwidth approx. 600 mm
    Active band length approx. 1.950 mm
    Space requirement Area approx. 3.95 m x 1.50 m, height 2.20 m
    Weight approx. 800 kg
head set blue headphone
Any questions on this product? Please feel free to contact us!
CONTACT US

Downloads

EGS catalogu

EGS Catalogue

download-file

The SUMO Flexiplex in use

SUMO_Flexiplex
video-player

SUMO Flexiplex von EGS Automatisierungstechnik auf der Motek 2015

00:57
SUMO_Flexiplex
video-player

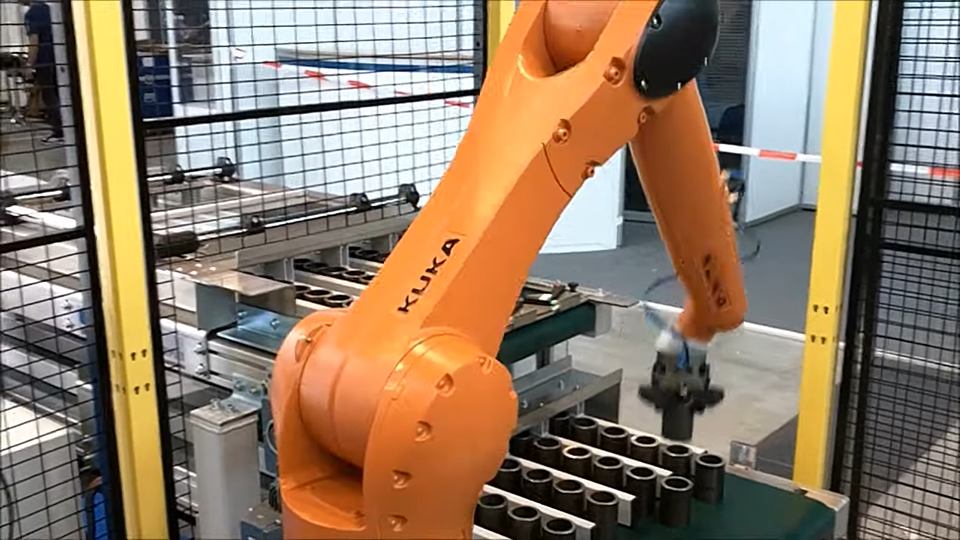

Robot Automation SUMO Flexiplex from EGS Automation Technology with Kuka robot KR10 R1100

03:06
SUMO_Flexiplex
video-player

SUMO Flexiplex lathe automation with Motoman MH6 robot from EGS Automation Technology

In this application, the workpieces are fed in via a multi-lane infeed conveyor. The robot picks up a raw part with its gripper tool and waits in front of the loading door of the lathe for the end of the current machining process. After the door is opened, the unmachined raw part is first inserted into the main spindle and then the machined finished part is removed from the machine's counter spindle. The door closes and the turning process begins. While the machining process is running, the finished part that has just been removed is placed on the outfeed conveyor and a new raw part is removed from the supply on the infeed conveyor. All palletising processes and workpiece handling outside the machine take place parallel to the main time, and the loading process is optimised for minimum cycle times to ensure the best possible output. The SUMO Flexiplex is the compact and extremely flexible solution for automating your handling and production process. An industrial robot ensures reliable and precise workpiece handling and offers the necessary flexibility for different workpiece sizes and geometries. Workpieces are fed in and removed via four-track belts, which can be adjusted to the current component in next to no time.

Technical data and facts:

  • 6-axis industrial robot MOTOMAN MH6
  • 4-lane workpiece infeed, infinitely adjustable from 40-125 mm web width
  • 4-lane workpiece removal
  • Filling and emptying of the system independent of the automatic loading process
  • Large workpiece autonomy
  • Changeover to other workpiece variants in just a few minutes without the need for tools
