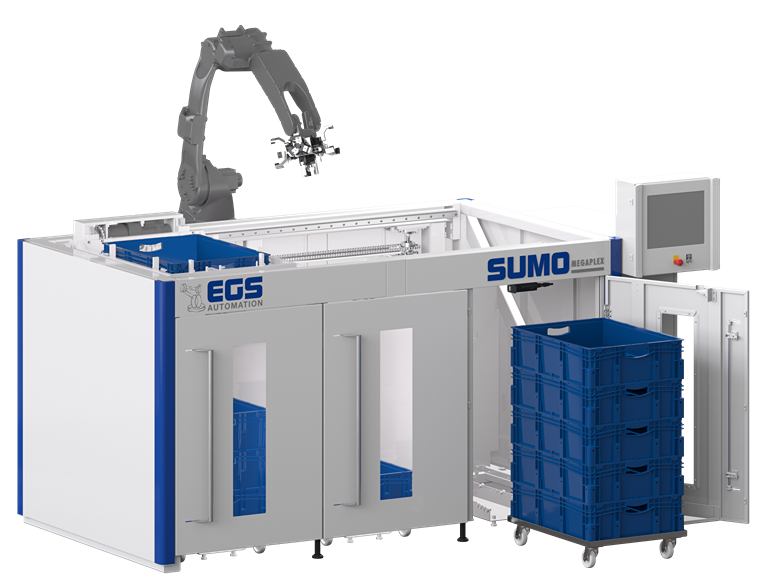

SUMO MEGAPLEX

FLEXIBLE, POWERFUL, EFFICIENT

A flexible universal system with large-scale workpiece autonomy

The SUMO Megaplex is the ideal solution for automating your handling and production process for larger workpieces – with a very high degree of workpiece autonomy.

Workpiece handling is done with precision and reliability by an industrial robot that offers the necessary flexibility for workpieces of different sizes and geometries. Workpieces are stored in workpiece carriers, which are inserted and removed as stacks on floor rollers. Designed for correspondingly high workpiece carrier weights, the Megaplex is capable of handling larger workpieces – with a high degree of autonomy. The customer’s own existing workpiece carriers and floor rollers can be used.

Specifications

Technical Data


Robot load capacity	16 upto 88kg
Robot reach	upto 2.538 mm
Autonomy / capacity	2 stacks with a net stack height of 1100 mm each
Possible pallet/workpiece carrier	Stackable workpiece carriers in a wide range of formats up to max. 800 mm x 600 mm
Max. part weight	15 kg
Max. pallet load	50 kg
Pallet change time	<10 s
Space requirement	approx. 3.20 m x 1.70 m, height 2.20 m
Weight approx.	1800 kg

Downloads

EGS Catalogue

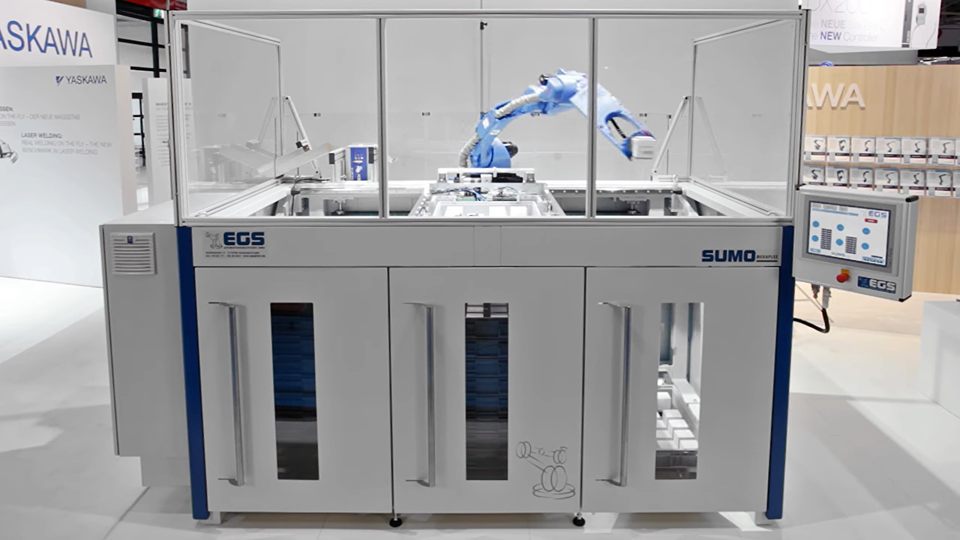

The SUMO Megaplex in use

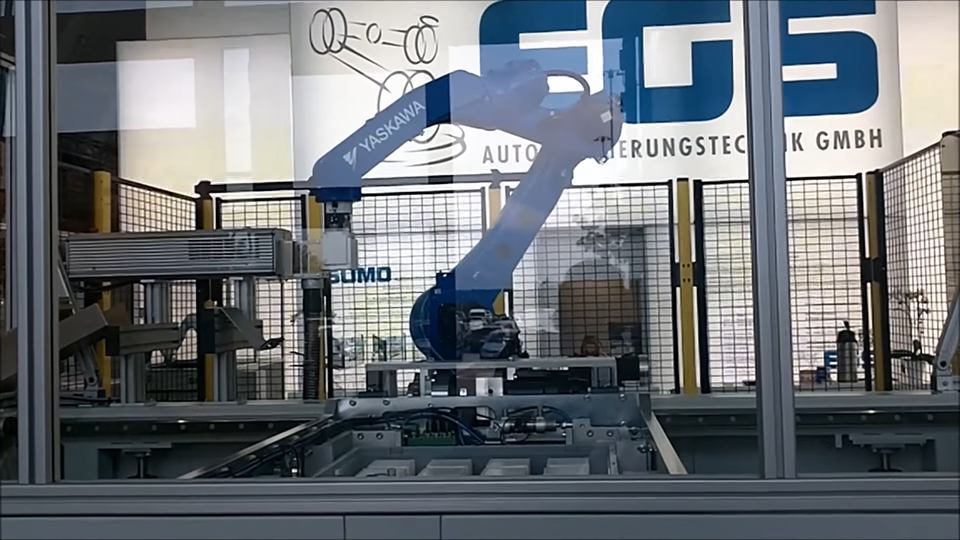

SUMO Megaplex palletising system with Motoman MH24 robot

SUMO Megaplex -- Flexible universal palletising system with extremely large workpiece autonomy

Technical data and facts:

6-axis industrial robot MOTOMAN MH24 with integrated media supply for the gripper tool
Palletising system for workpiece carrier stacks on transport trolleys
Workpiece carrier 600 x 800 mm (format 1/2 Euro pallet)
Trolley change without interrupting automatic operation
Large workpiece autonomy: 1,100 mm stack height per workpiece carrier stack
Flexible and dynamic palletising using servo axes

Areas of application and features of the SUMO Megaplex: Loading and/or unloading of machines and processes and storage of workpieces before and/or after processing. Simple integration into existing internal logistics thanks to the use of standardised workpiece carrier formats. Extremely high workpiece autonomy allows for low-labour production. The use of a flexible robot for workpiece handling allows the integration of additional value-adding processes in non-productive time.
