SUMO MINIPLEX


COMPACT, FAST, PROFITABLE
A compact and highly dynamic sorting, palletising and stacking system

The SUMO Miniplex is a compact, flexible and highly dynamic solution for loading workpiece carriers with small parts.

Workpiece handling is done quickly and reliably by an industrial robot. It offers the necessary flexibility for diverse workpiece variants. Workpiece-specific gripper tools ensure precision parts pick-up and placement. The workpieces are removed from a production process or a feed system and placed in the designated workpiece carriers. The operator can insert and remove the workpiece carriers in stacks. The SUMO Miniplex is the ideal automation solution for loading workpiece carriers with small parts.
Downloads
GO TO DOWNLOADS
Specifications
GO TO SPECIFICATIONS
Videos
GO TO VIDEOS

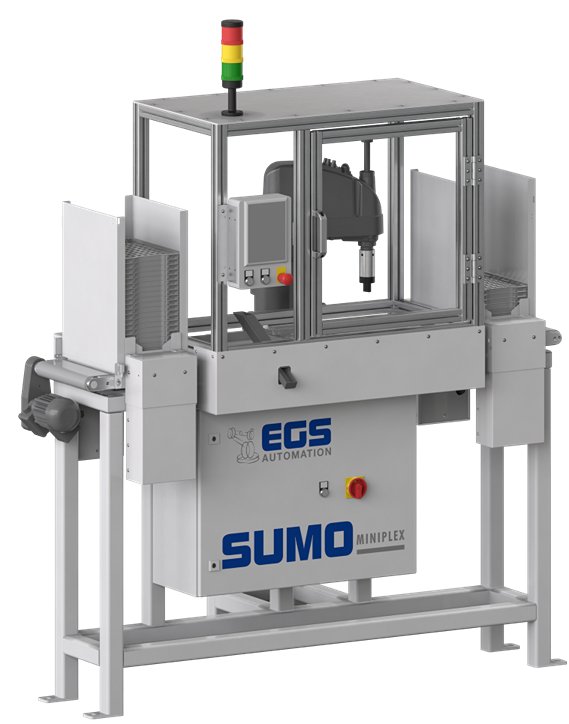

sumo-miniplex
feature card bg
Dynamic

Fast

Fast palletising and stacking
feature card bg
Fits

Convenient

In automatic mode, loaded workpiece carriers can be removed at any time or empty workpiece carriers can be loaded (individually or in stacks)
feature card bg
Flexible

Flexible

Small parts assembly on customised workpiece carriers in various formats
feature card bg
Karten_Icon_Autonom

Autonomous

System autonomy can be expanded by using several stacking modules in series


Specifications



  • Technical Data
    Robot load capacity upto 7 kg
    Robot reach upto 927 mm
    Robot design Scara (4 axes)
    Articulated arm (6 axes)
    Max. Part weight 1kg
    Space requirement Area approx. 1.75 m x 1.70 m, height 2.20 m
    Weight approx. 350 kg
head set blue headphone
Any questions on this product? Please feel free to contact us!
CONTACT US

Downloads

EGS catalogu

EGS Catalogue

download-file

The SUMO Miniplex in use

SUMO_Miniplex
video-player

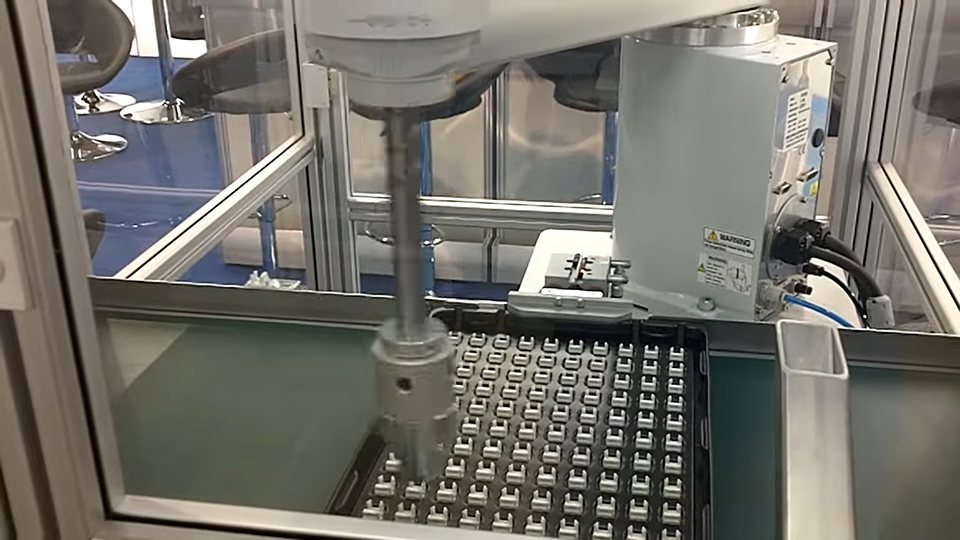

Palletising and loading system with Epson SUMO Miniplex robot from EGS Automation Technology

Flexible sorting, palletising and stacking system. Individual workpieces are sorted into pallets from an upstream process. Large storage capacity for empty and full pallets in stacks outside the robot's working area. While the robot is loading the current pallet, new empty pallets can be inserted or full pallets removed at any time in automatic mode. Extremely short picking times thanks to the use of a highly dynamic Scara or 6-axis robot. Very compact design, outstanding autonomy in relation to space requirements. Ideal system for pre-loading workpiece carriers with components for processing in another SUMO loading system.
