SUMO MULTIPLEX


COMPACT, ROBUST, EFFICIENT
The space-saving universal system with a high degree of autonomy

The SUMO Multiplex is an economical and compact solution with large workpiece storage capacity for automating your handling and production process.

Workpiece handling is done with precision and reliability by an industrial robot that offers the necessary flexibility for workpieces of different sizes and geometries. Workpiece-specific gripper tools ensure precision pick-up, transfer and placement of parts. Workpieces are stored on standardised pallets. These can be prepared in pairs independently of the production process and exchanged at any time during automatic operation. While one pallet is being processed by the industrial robot, new raw part pallets can be inserted and finished part pallets removed at any time.
Downloads
GO TO DOWNLOADS
Specifications
GO TO SPECIFICATIONS
Videos
GO TO VIDEOS

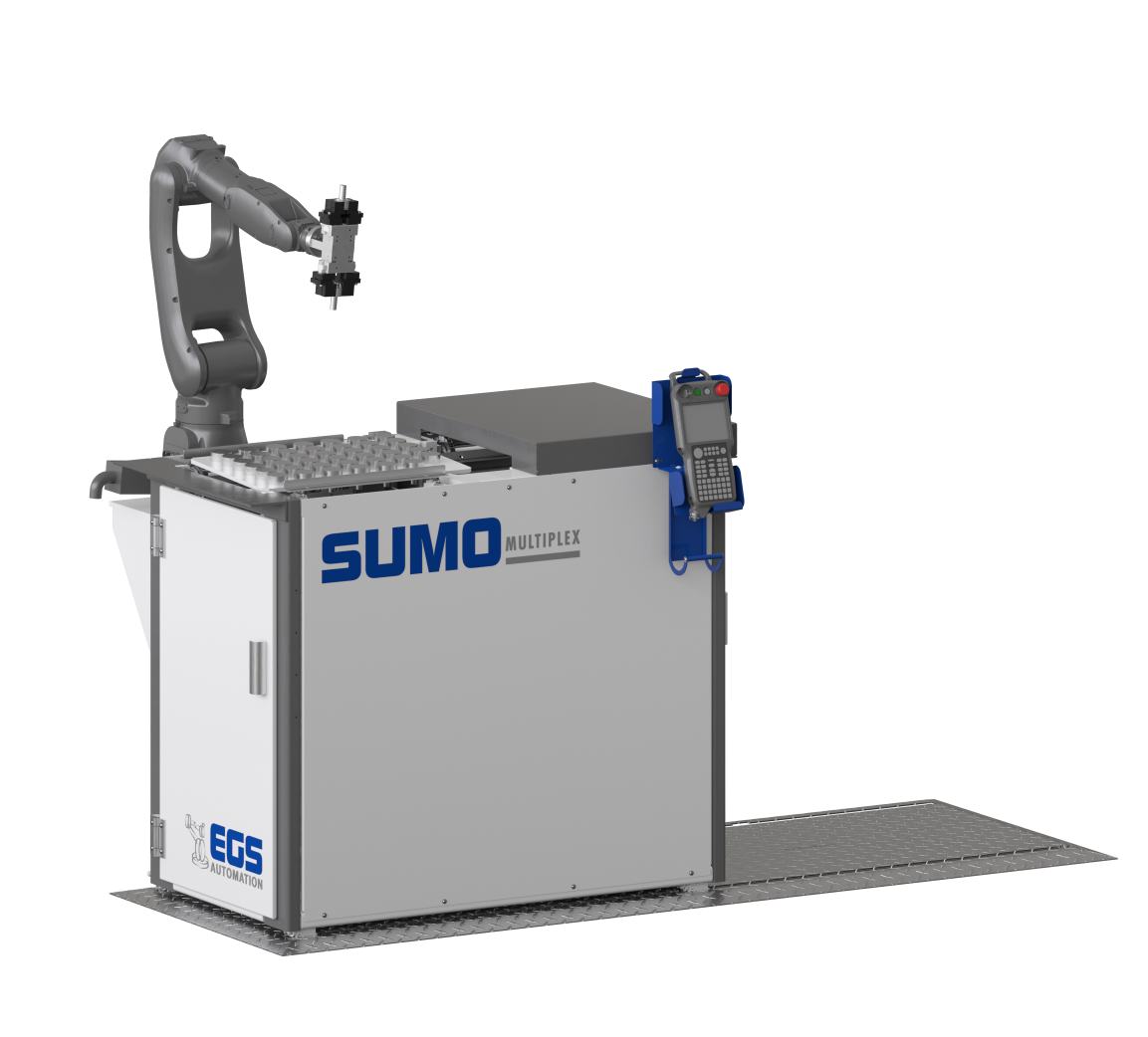

SUMO multiplex
feature card bg
Flexible

Flexible

12-fold palletising unit in standard format – 600x400mm (quarter Euro pallet)
feature card bg
compact

Compact & autonomous

Minimal space requirement with high degree of autonomy (up to a complete shift)
feature card bg

Modular

Customised adaptation of pallets to workpieces, product-specific inlays or modular plastic clips
feature card bg
Karten_Icon_Zugnglich

Accessible and Fast

Full accessibility thanks to optional side-shift system, with pallet change in less than 10 sec.


Specifications



  • Technical Data
    Robot load capacity upto 25 kg
    Robot reach upto 1.730 mm
    Number of pallets 12 pcs
    Possible pallet/workpiece carrier 600 mm x 400 mm (1/4-Euro palette)
    Max. part weight 7.5 kg
    Max. pallet load 20 kg
    Pallet change time <10 s
    Space requirement Area approx 1.40 m x 1.90 m, height 2.00 m
    Weight approx. 600 kg

head set blue headphone
Any questions on this product? Please feel free to contact us!
CONTACT US

Downloads

EGS catalogu

EGS Catalogue

download-file

The SUMO Multiplex in use

SUMO_Multiplex
video-player

SUMO Multiplex palletising and loading system from EGS Automation Technology

01:55
SUMO_Multiplex
video-player

Palletising and loading system with KUKA agile SUMO Multiplex robot from EGS Automation Technology

Flexible automation system with 12-fold palletising unit. Very high autonomy of the system thanks to a storage capacity of 12 raw part or 12 finished part pallet spaces. While the current pallet is being processed by the 6-axis robot, new raw part pallets can be inserted or finished part pallets removed at any time in automatic mode. Pallets in standard format 600x400mm (1/4 Euro pallet). The pallets can be adapted to the workpieces using plug-in pallet systems or customised, product-specific inlays. Very compact design, outstanding autonomy in relation to space requirements. The optional side shifting system allows the loading system to be easily shifted to the side, providing full accessibility for manual loading of small batches or for set-up.
01:38
SUMO_Multiplex
video-player

Palletising and loading system with MOTOMAN robot SUMO Multiplex from EGS Automation Technology

Flexible automation system with 12-fold palletising unit. Very high autonomy of the system thanks to a storage capacity of 12 raw part or 12 finished part pallet spaces. While the current pallet is being processed by the 6-axis robot, new raw part pallets can be inserted or finished part pallets removed at any time in automatic mode. Pallets in standard format 600x400mm (1/4 Euro pallet). The pallets can be adapted to the workpieces using plug-in pallet systems or customised, product-specific inlays. Very compact design, outstanding autonomy in relation to space requirements. The optional side shifting system allows the loading system to be easily shifted to the side, providing full accessibility for manual loading of small batches or for set-up.
00:55
