Contact UsSUMO QUATROPLEX
COMPACT | ROBUST | PROFITABLE
A simple and variable drawer system

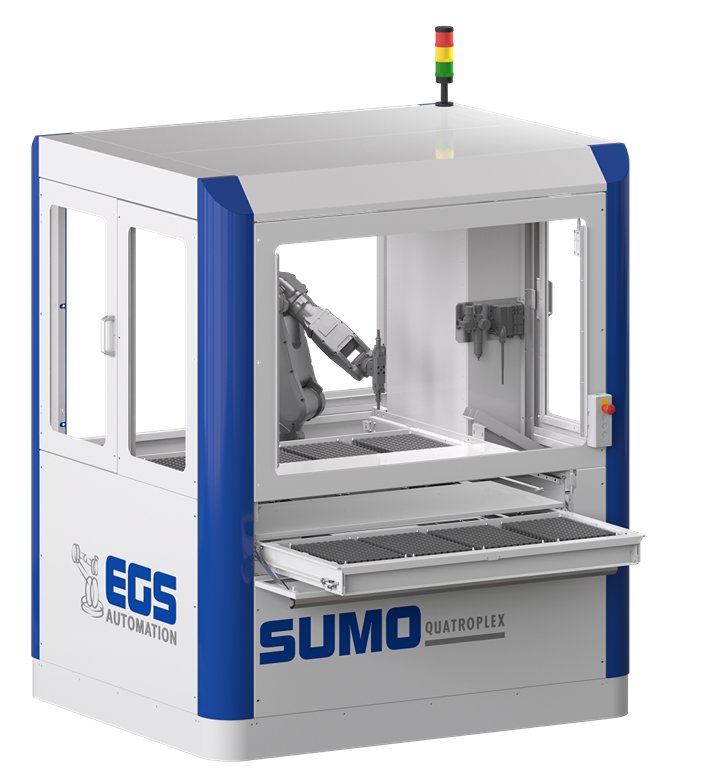

The SUMO Quatroplex is an affordable, compact entry-level solution for automating your handling and production process with good workpiece autonomy.

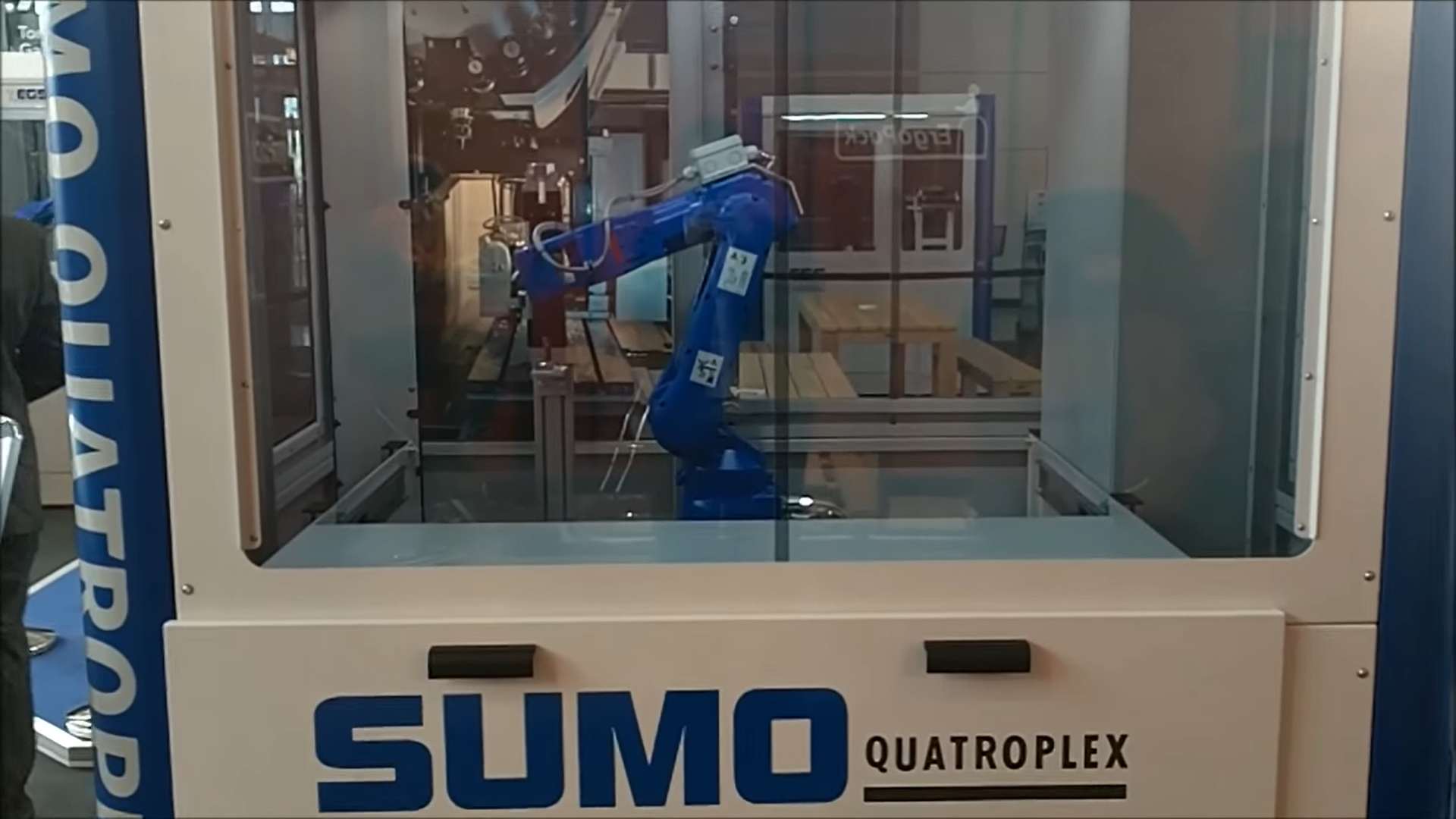

Workpiece handling is done with precision and reliability by an industrial robot that offers the necessary flexibility for workpieces of different sizes and geometries. Workpiece-specific gripper tools ensure precision pick-up, transfer and placement of parts. Workpieces are stored on standardised pallets. These can be prepared in pairs independently of the production process and exchanged at any time during automatic operation. Built-in workpiece holders and detection via camera systems are also options. SUMO Quatroplex impresses with its compact design and workpiece autonomy of four workpiece carriers in quarter Euro pallet format. SUMO Quatroplex is the ideal automation partner for applications where there is limited available space and a process duration of 15 seconds to several minutes.
Flexible
Workpiece storage in pallets, integrated workpiece holders or camera detection
Compact
Low space requirement with high degree of workpiece autonomy
Modular
Double palletising unit in standard format - 2400x400 mm (2 x quarter Euro pallet)
Fast
Full accessibility thanks to an optional side-shift system, with pallet change in less than 10 sec.
Specifications
-
Technical Data
Robot load capacity upto 12 kg Robot reach upto 1.400 mm Number of pallets 4 pcs Possible pallet/workpiece carrier 600 mm x 400 mm (1/4-Euro palette) Max. part weight 7.5 kg Max. pallet load 30 kg (per storage level) Pallet change time <10 s Space requirement Area approx ca. 1.80 m x 1.50 m, height ;2.00 m Weight approx. 750 kg
