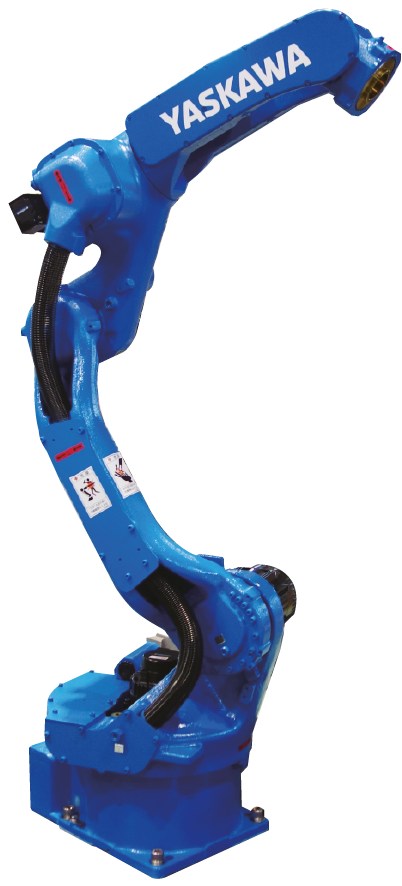

Motoman GP12


The MOTOMAN GP12 is a fast and precise 6-axis industrial robot with a load capacity of up to 12 kg. With a reach of 1440 mm and a high repeat accuracy of ± 0.02 mm, it is ideally suited for assembly tasks, as well as for universal handling tasks, CNC machine tool loading and packaging. Its modern, slim industrial design minimises the space required at the installation site.

The built-in media routing through its hollow arm enables optimum integration of the gripper or sensor technology and an external media package is often not needed, which also minimises interfering contours.


Specifications



  • Technical Data
    Number of axles  6
    Load capacity  12 kg
    Weight  150 kg
    Power supply  1.5 kVA
    Max. working range 1.440 mm
    Mounting options Floor, ceiling, wall
    Repeat accuracy 0.02 mm

  • Options / Interfaces
    I/O expansion, analogue interface, Profibus, Profinet, Ethernet IP, DeviceNet, image processing, conveyor belt synchronisation, safety control

Downloads

EGS catalogu

EGS Catalogue

download-file

Control unit and teach box

Standard
Steuerung

YRC 1000

To Controller

Option
Steuerung

Controller Teachbox

Standard
Teachbox

PHG YRC 1000

To Teachbox

Option
Smart Pendant

Smart Pendant

To Teachbox
