Motoman GP180


The flexible MOTOMAN GP180 6-axis robot offers maximum performance for a wide range of applications, such as handling, machine loading and press interlinking.

Despite its high load capacity and long reach, the MOTOMAN GP180 requires very little space. With a width of just 625 mm, its compact, narrow body is capable of a load capacity of 180 kg.
The vibration control system utilizes the increased axis speed as well as the inherent rigidity of the gears and makes special acceleration for short movements possible. The reduced cycle times further increase productivity.

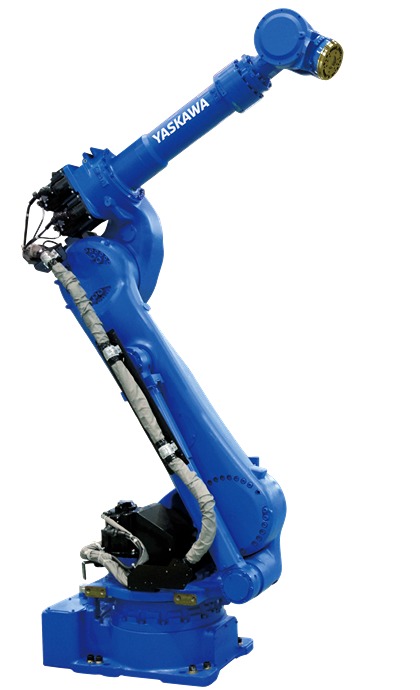

MOTOMAN-GP180


Specifications



  • Technical Data
    Number of axles  6
    Load capacity  180 kg
    Weight  1.020 kg
    Power supply  5 kVA
    Max. working range 2.702 mm
    Mounting options Floor
    Repeat accuracy 0.05 mm

  • Options / Interfaces
    I/O expansion, analogue interface, Profibus, Profinet, Ethernet IP, DeviceNet, image processing, conveyor belt synchronisation, safety control

Downloads

EGS catalogu

EGS Catalogue

download-file

Control unit and teach box

Standard
Steuerung

YRC 1000

To Controller

Option
Smart Pendant

Smart Pendant

To Teachbox

Standard
Teachbox

PHG YRC 1000

To Teachbox
