Motoman GP20



The MOTOMAN GP20 is a very versatile 6-axis industrial robot with a load capacity of up to 20 kg. It has a reach of 1,802 mm and achieves very good cycle times with excellent repeat accuracy.

Its slim design, especially that of the wrist, allows it to be used in many applications, e.g. handling workpieces, loading/unloading tools and injection moulding machines. Its stable wrist also makes it highly suitable for machining and grinding work. The wrist of the MOTOMAN GP20 is particularly resistant to the penetration of dust and liquids (IP67).

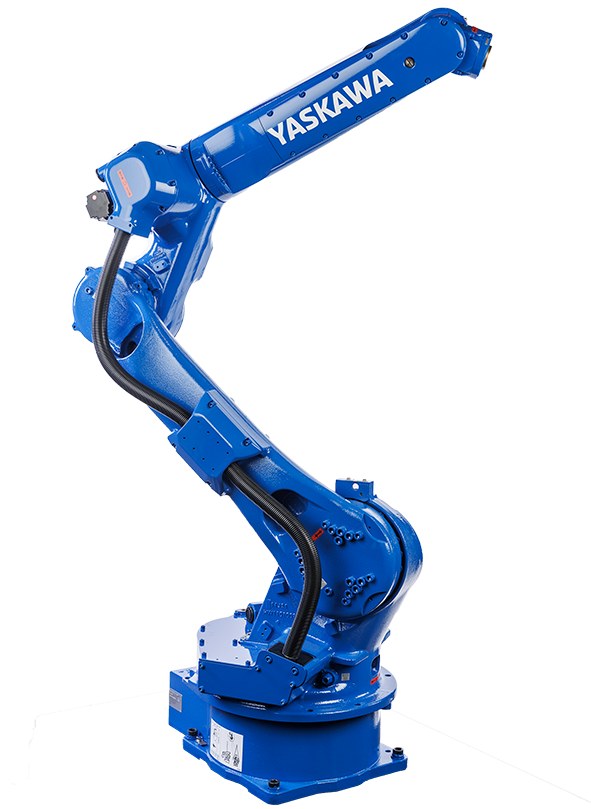

Motoman_GP20


Specifications



  • Technical Data
    Number of axles  6
    Load capacity  20 kg
    Weight  250 kg
    Power supply  2 kVA
    Max. working range 1.802 mm
    Mounting options Floor, ceiling, wall
    Repeat accuracy 0.02 mm

  • Options / Interfaces
    I/O expansion, analogue interface, Profibus, Profinet, Ethernet IP, DeviceNet, image processing, conveyor belt synchronisation, safety control

Downloads

EGS catalogu

EGS Catalogue

download-file

Control unit and teach box

Standard
Steuerung

YRC 1000

To Controller

Option
Smart Pendant

Smart Pendant

To Teachbox

Standard
Teachbox

PHG YRC 1000

To Teachbox
