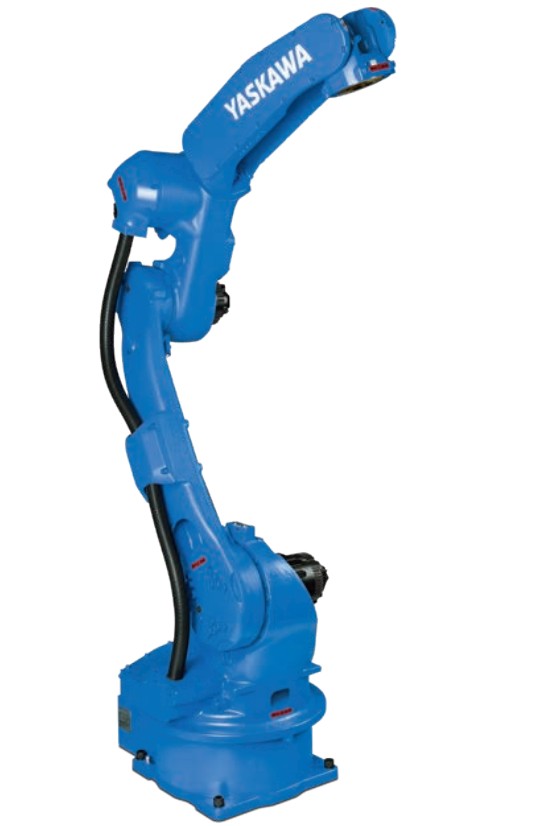

Motoman GP25


The MOTOMAN GP25 is a fast and precise 6-axis industrial robot with a load capacity of up to 25 kg. With a reach of 1,730 mm and a high repeat accuracy of ± 0.02 mm, it is ideally suited for assembly tasks as well as for universal handling tasks, CNC tool machine loading and packaging

The numerous functions of the MOTOMAN YRC1000 controller makes it possible to use MOTOMAN GP25 robot in a wide range of applications. Used together with the conventional teach pendant, these robots are reliable partners in mechanical engineering. With the innovative operating concept of the Smart Pendant, it is a very good introduction to industrial automation.
Motoman_GP25


Specifications



  • Technical Data
    Number of axles  6
    Load capacity  25 kg
    Weight  250 kg
    Power supply  2 kVA
    Max. working range 1.730 mm
    Mounting options Floor, ceiling, wall
    Repeat accuracy 0.02 mm

  • Options / Interfaces
    I/O expansion, analogue interface, Profibus, Profinet, Ethernet IP, DeviceNet, image processing, conveyor belt synchronisation, safety control

Downloads

EGS catalogu

EGS Catalogue

download-file

Control unit and teach box

Standard
Steuerung

YRC 1000

To Controller

Option
Smart Pendant

Smart Pendant

To Teachbox

Standard
Teachbox

PHG YRC 1000

To Teachbox
