Motoman GP70L


The fast and dynamic 6-axis MOTOMAN GP70L robot offers top performance in order picking as well as box, carton and bundle handling in the logistics sector. The most powerful robot in its class, it offers an enormous increase in efficiency and productivity for sorting and packaging in intralogistics applications.

With a load capacity of 70 kg and an enormous reach of 2,732 mm, its slim design nevertheless means it can operate in the tightest of spaces, making high robot density possible. The narrow cable routing further reduces the width of the robot. This state of the art picking and handling robot can be used flexibly to supplement or replace manual stations and, when used with additional peripherals (e.g. 3D image processing), it increases profitability.

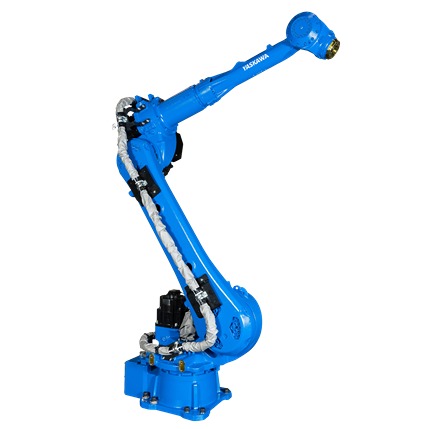

Motoman_GP70L


Specifications



  • Technical Data
    Number of axles  6
    Load capacity  70 kg
    Weight  650 kg
    Power supply  5 kVA
    Max. working range 2.723 mm
    Mounting options Floor
    Repeat accuracy 0.05 mm

  • Options / Interfaces
    I/O expansion, analogue interface, Profibus, Profinet, Ethernet IP, DeviceNet, image processing, conveyor belt synchronisation, safety control

Downloads

EGS catalogu

EGS Catalogue

download-file

Control unit and teach box

Standard
Steuerung

YRC 1000

To Controller

Option
Smart Pendant

Smart Pendant

To Teachbox

Standard
Teachbox

PHG YRC 1000

To Teachbox
