Motoman GP88


The flexible MOTOMAN GP88 is a dynamic 6-axis robot with a high load capacity of up to 88 kg. It can be used for a wide range of applications, e.g. in the areas of handling, machine loading, processing and gluing.

Despite its compact design, the MOTOMAN GP88 has a long reach with a small interference radius. This makes it possible to position the robot close to loading and unloading stations, which in turn minimises the space required.

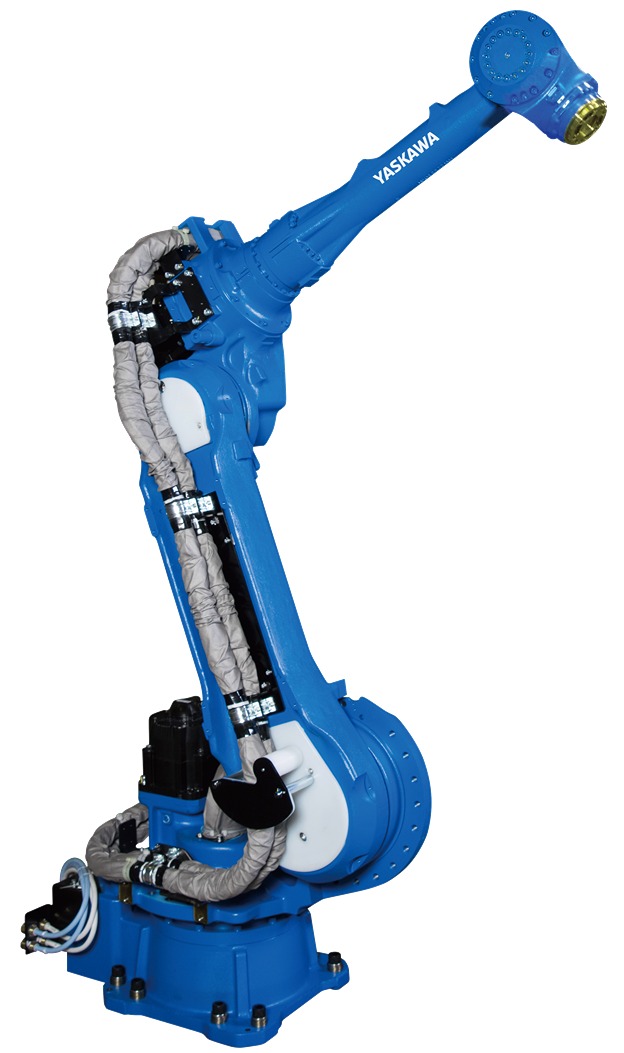

MOTOMAN_GP88


Specifications



  • Technical Data
    Number of axles  6
    Load capacity  88 kg
    Weight  630 kg
    Power supply  4 kVA
    Max. working range 2.236 mm
    Mounting options Floor, ceiling, wall
    Repeat accuracy 0.03 mm

  • Options / Interfaces
    I/O expansion, analogue interface, Profibus, Profinet, Ethernet IP, DeviceNet, image processing, conveyor belt synchronisation, safety control

Downloads

EGS catalogu

EGS Catalogue

download-file

Control unit and teach box

Standard
Steuerung

YRC 1000

To Controller

Option
Smart Pendant

Smart Pendant

To Teachbox

Standard
Teachbox

PHG YRC 1000

To Teachbox
