Motoman SG400


The robust MOTOMAN SG400 SCARA robot is characterised by a large work area paired with a compact design.

It is particularly suitable for applications where high speeds and precision are required, such as picking and packing, dosing and feeding. Low interfering contours reduce the risk of collision and enable the robots to work together in the tightest of spaces. The internal media routing ensures reliable work cycles and saves on costly maintenance.

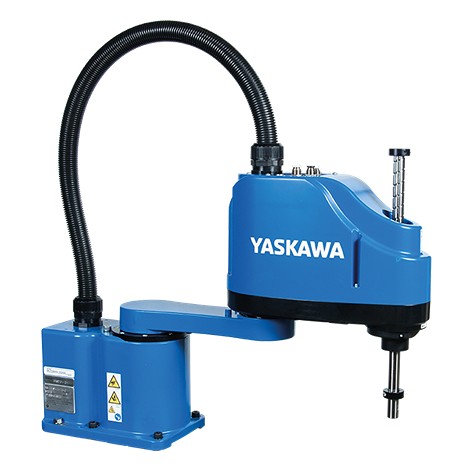

MOTOMAN-SG400


Specifications



  • Technical Data
    Number of axles  4
    Load capacity  3 kg
    Weight  14 kg
    Power supply  1 kVA
    Max. working range 400 mm
    Floor mounting  options
    Repeat accuracy 0.01 mm

  • Options / Interfaces
    I/O expansion, Profibus, Profinet, Ethernet IP, DeviceNet, image processing, conveyor belt synchronisation

Downloads

EGS catalogu

EGS Catalogue

download-file

Control unit and teach box

Standard
Steuerung

YRC 1000 micro

Controller Teachbox

Standard
Teachbox

PHG YRC 1000

To Teachbox

Option
Smart Pendant

Smart Pendant

To Teachbox
